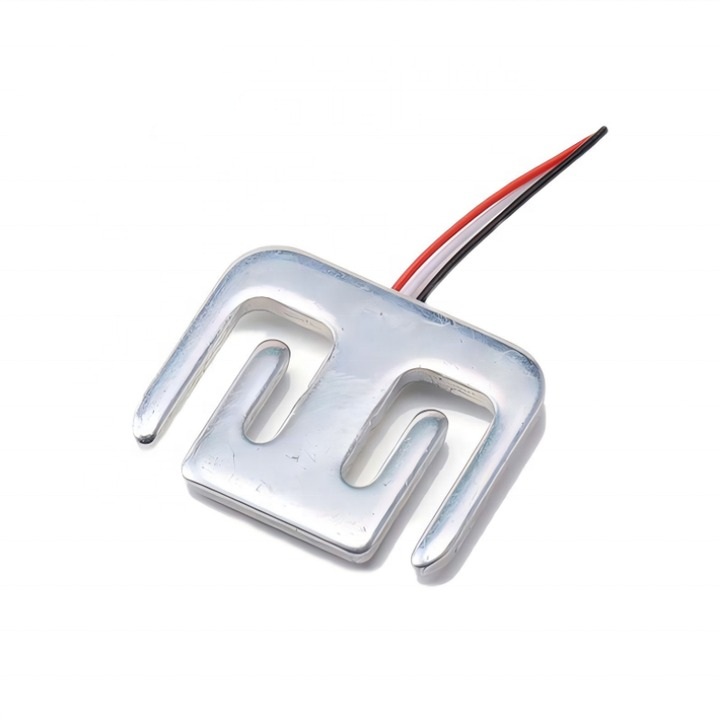

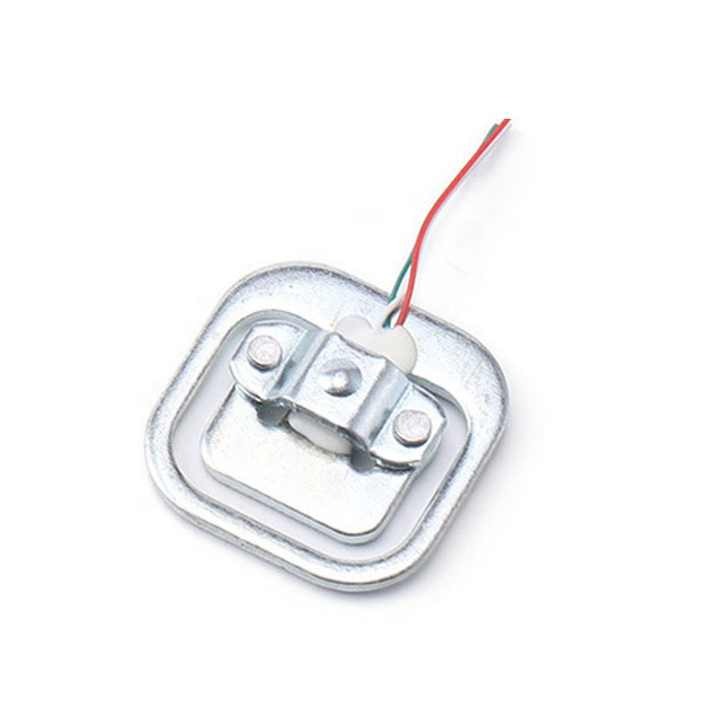

Small Low Profile Load Cell Designed for IoT and Smart Industrial Use
Menu
| Use | micro load cell used for smart shelf |
| Description | full bridge and half bridge |
| Type | Load Cell |
| Features | mini size |
| Output | Analog output |
| Accuracy | ±0.05% |
| Voltage-Supply | 3~10V |
| Compensated Temperature | -20~60 |
| Non-linearity | 0.05%F.S |
| Repeatability | 0.05%F.S |
| Zero balance | ±0.3mv/v |
| Output resistance | 1000±10Ω |
| Mounting Type | corner strapped |
| Series | Micro load cell |
| Theory | Resistance strain gauge |
| Description | load cell |
| Actuator Type | flat |
| Operating Force | compression |
| Range | 1kg 2kg 3kg 4kg 5kg 10kg 30kg 50kg 100kg |
| Hysteresis | 0.05%F.S |
| Creep | 0.1%F.S/3min |
| Input resistance | 1000±10Ω |
| Safety overload | 120%F.S |
