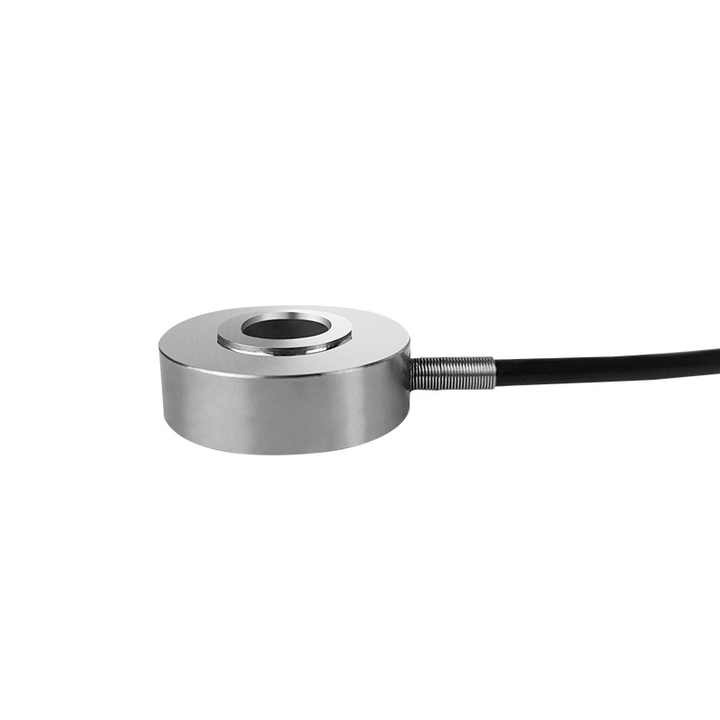

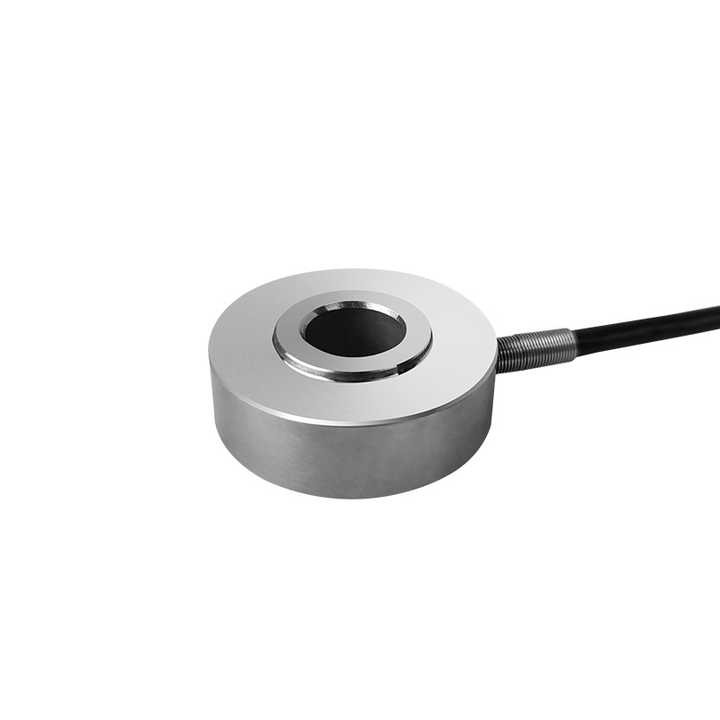

Miniature Compression Through Hole Force Sensor Load Cell
Menu
| Use | Automatic locking screw machine |
| Description | Dount Load Cell |
| Type | Load Cell |
| Features | Central hole |
| Brand Name | Fibos |
| Output | mV/V |
| Input Impedance | 780±20Ω |
| Temp.effect on output | 0.05%F.S./10℃ |
| Insulation Resistance | ≥5000MQ/100V(DC) |
| Operating Temp Range | -20~80℃ |
| Mounting Type | Center mounting |
| Theory | Resistance strain gauge |
| Description | Annular load cell ring force sensor |
| Category | Thru-hole Load Cells |
| Output Impedance | 700±100 |
| range Temp.effect on zero | 0.05%F.S./10℃ |
| Compensated Temp Range | -10~60℃ |
| Material | Stainless Steel |
