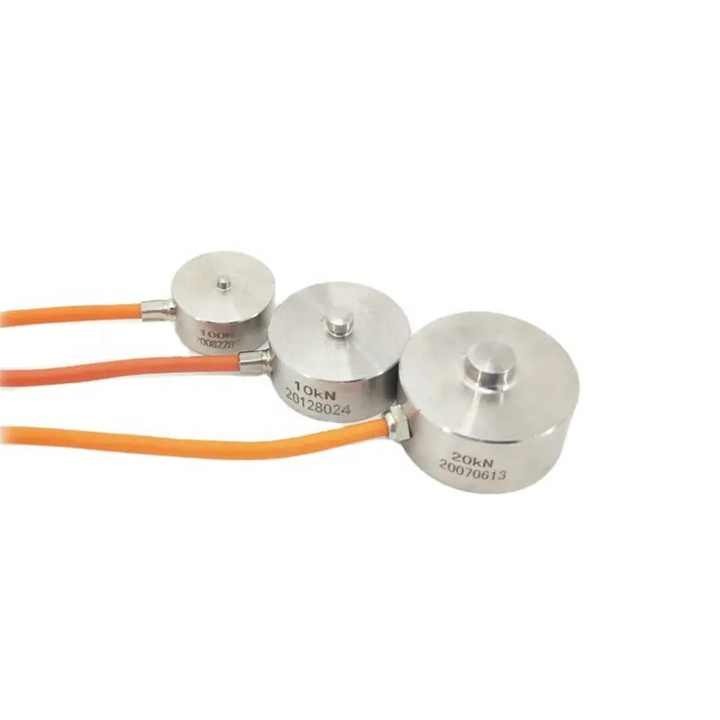

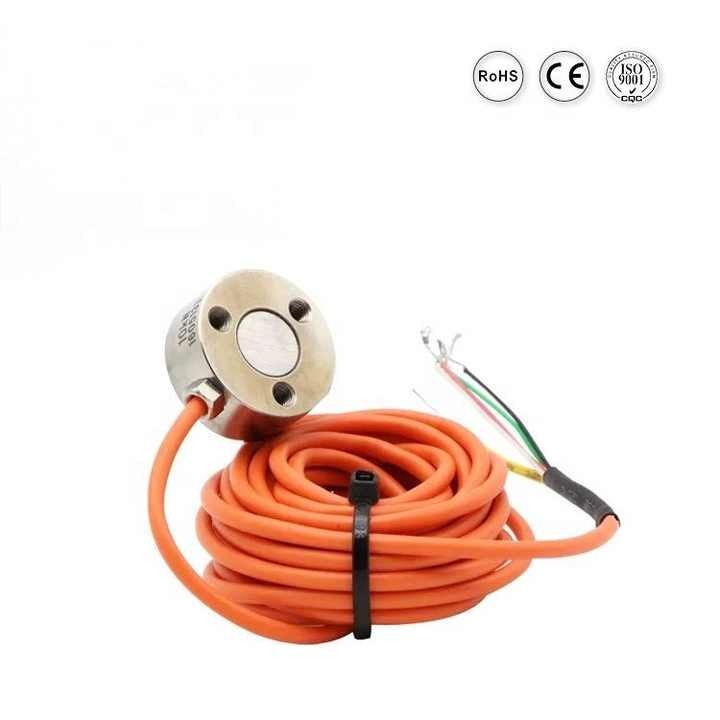

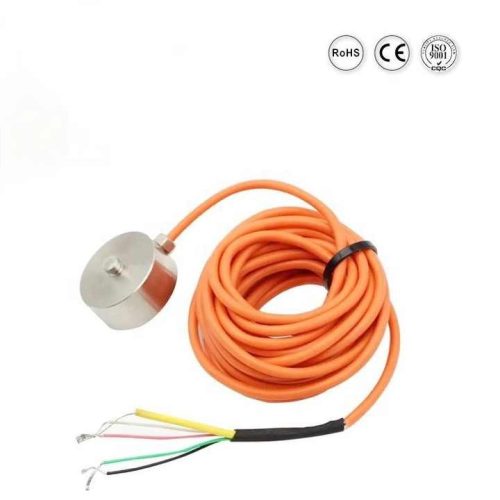

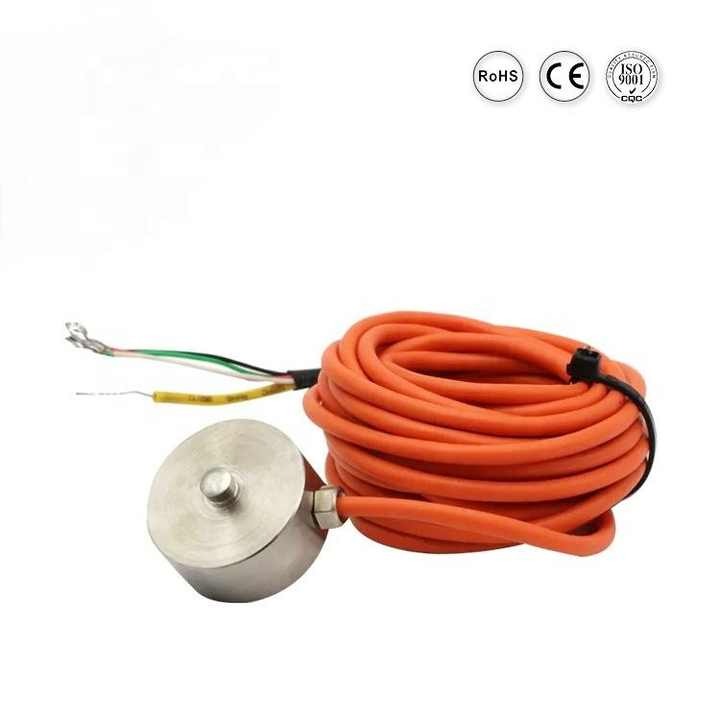

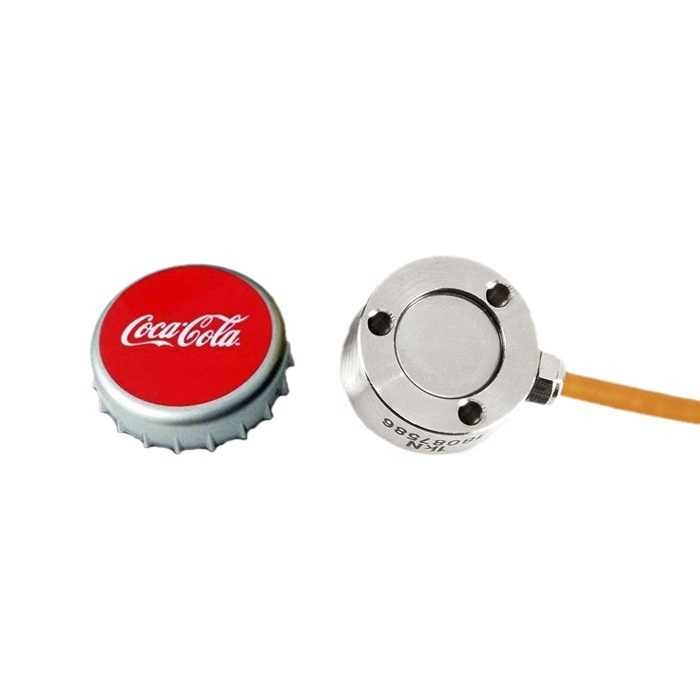

Mini Weighing Button Load Cell Sensor for 10Kg to 200Kg
Menu
| Use | load cell used for robort |
| Description | Miniature button force sensor |
| Type | force sensor |
| Features | small size |
| Brand Name | Amowellsensor |
| Output | Analog output |
| Accuracy | ±0.05% |
| Voltage-Supply | 3~10V |
| Compensated Temperature | -20~60 |
| Accuracy | 0.5%FS |
| Hysteresis | 0.10% |
| Creep | 0.1%F.S/30min |
| Input resistance | 380±100 |
| Safety overload | 150%F.S |
| Mounting Type | screw fixation |
| Series | miniature force sensor |
| Theory | Resistance strain gauge |
| Description | load cell |
| Actuator Type | Button |
| Operating Force | compression |
| Range | 0.1-2kN |
| Non-linearity | 0.10% |
| Repeatability | 0.10% |
| Zero balance | ±1.0%FS |
| Output resistance | 350±3Ω |
Related products
-
Micro Load Cell Button Style Tension Compression Sensor
Button Load Cells -

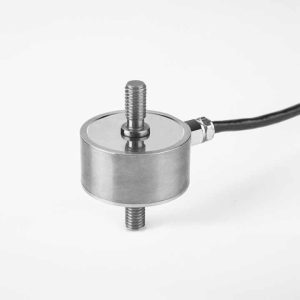

Miniature button-type tension pancake load cell made of alloy steel
