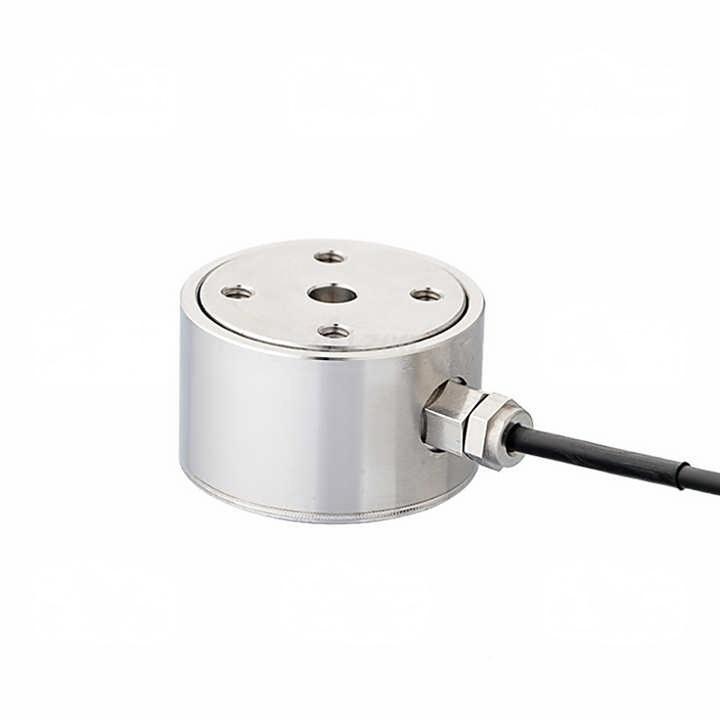

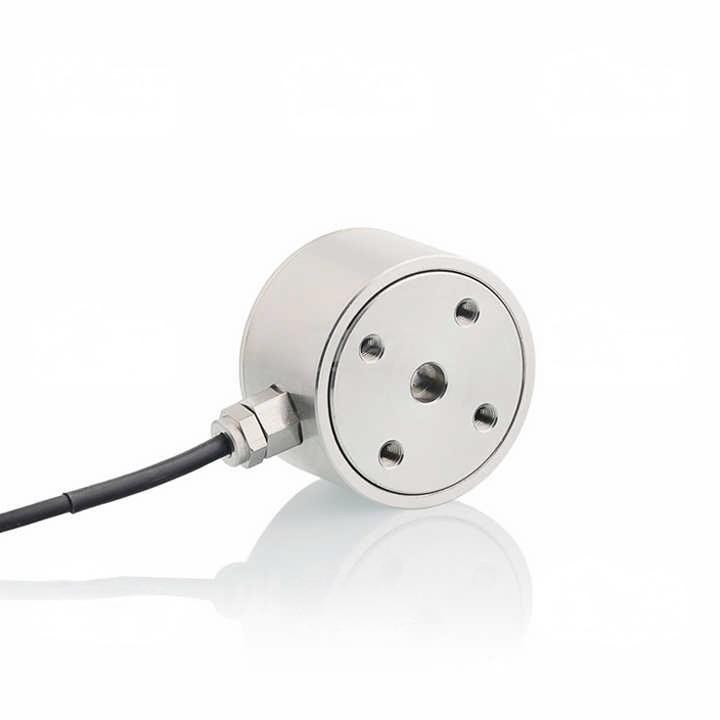

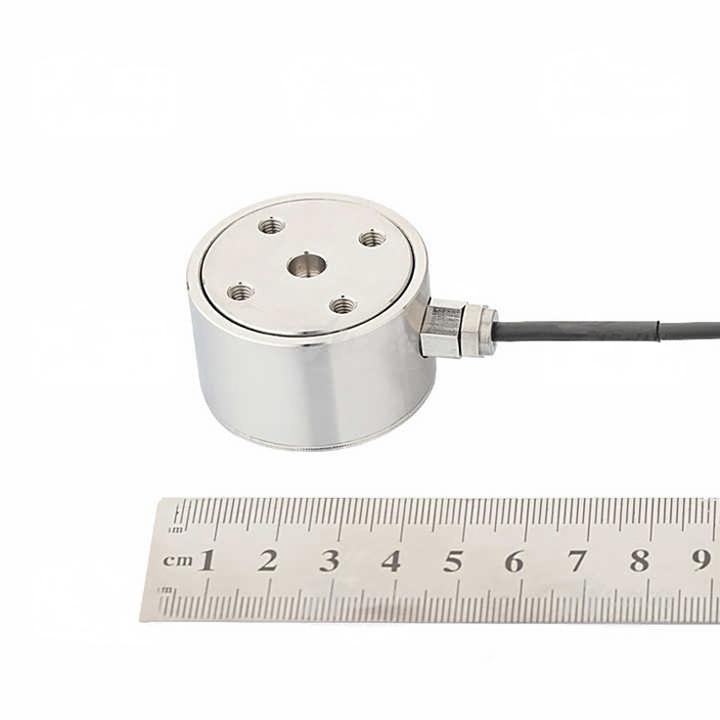

Micro Tension Column Load Cell Sensor for Force Weighing
Suitable for hopper scales, lifting hook scales and grinder, polishing machines, and anti-press, press assembling. This column load cell offers an accurate measurement of force and is ideal for compression loading applications. Recommended for industrial weighing systems, automation and tension/compression load cell control with high accuracy and durability.
Menu
| Use | Force Value Measurement |
| Type | force sensor |
| Output | 2.0±10%mV/V |
| Accuracy | 0.1%FS |
| zero balance | ±2%FS |
| cable specification | D3×3m |
| Impedance | 3500 |
| Maximum overload | 300% |
| Theory | Resistance strain gauge |
| Description | column type force sensor |
| Material | stainless steel |
| Creep | 0.05%FS |
| Temp effect on output | 0.05%FS/10℃ |
| Insulation | ≥5000MΩ/100VDC |
| application | force measurement |
