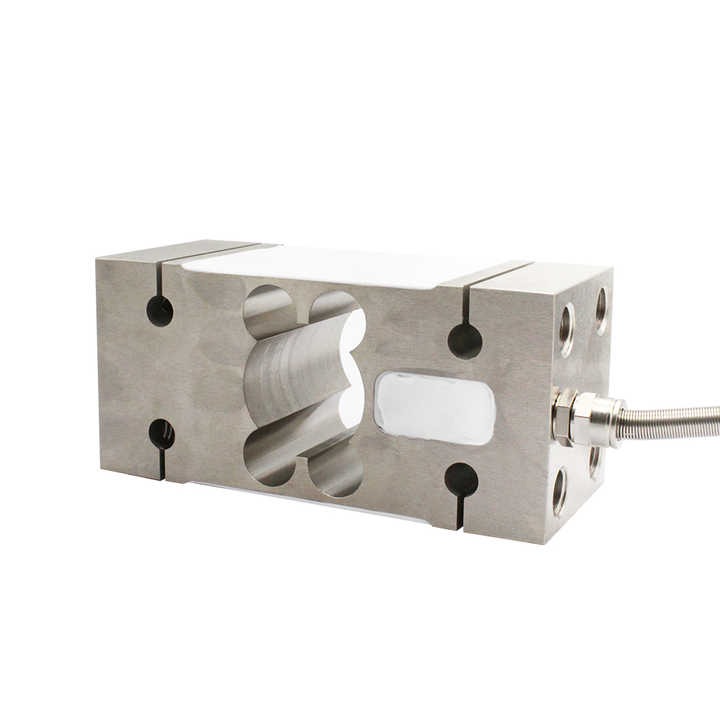

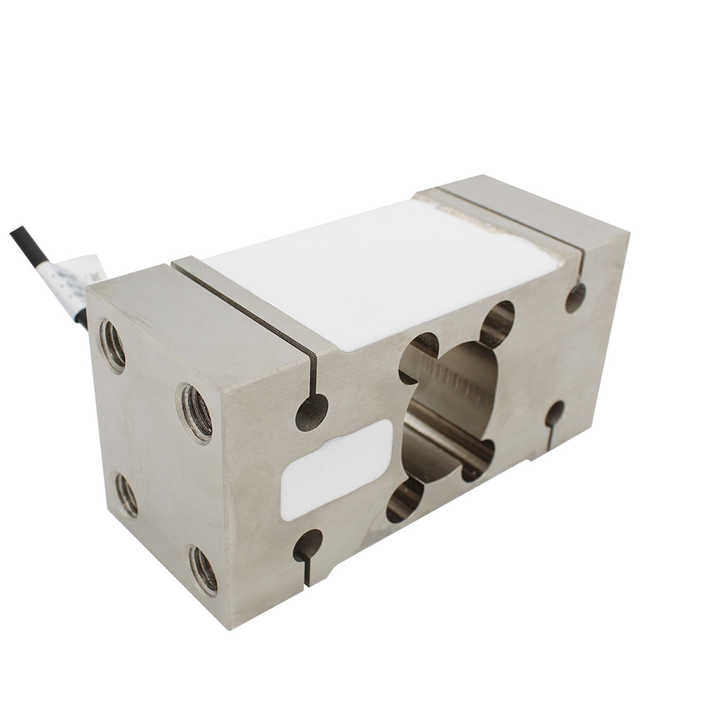

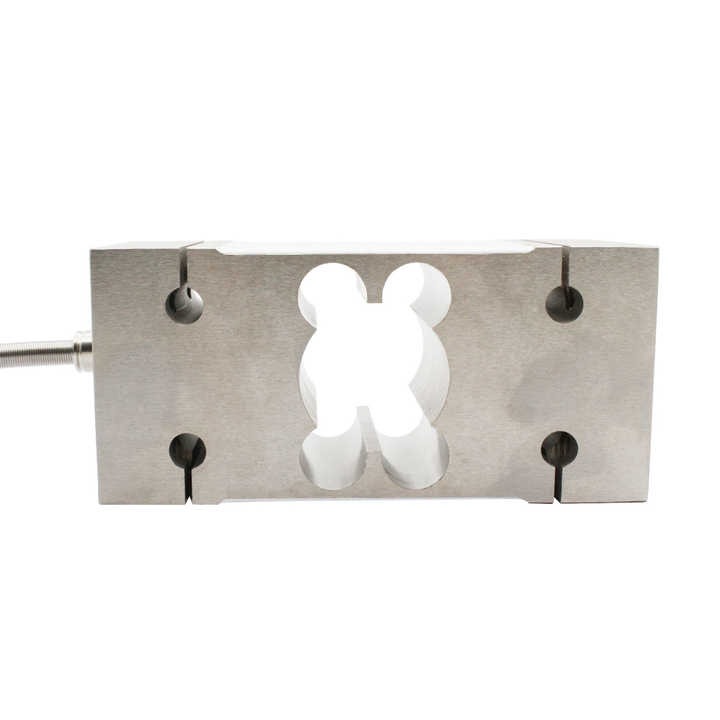

Low Profile Bending Shear Beam Load Cell 150 to 2000KG

Use	Force measurement
Description	Load Cell
Type	Load Cell
Theory	Resistance sensor
Description	Bending Shear Beam Load Cells
Capacity	15025050010002000kg
Output sensitivity	2.0±0.02mV/V
Safe overload	150%
Operating temperature	-20～+60℃
Mounting Type	Easy install
Series	Load Cell
Output	Analog sensor
Material	Alloy steel
Accuracy	C2/C3
Combined Error	≤±0.03 F.S.
Zero balance	±1.0%F.S.
Insulation resistance	≥5000 MΩ(at 100VDC)
