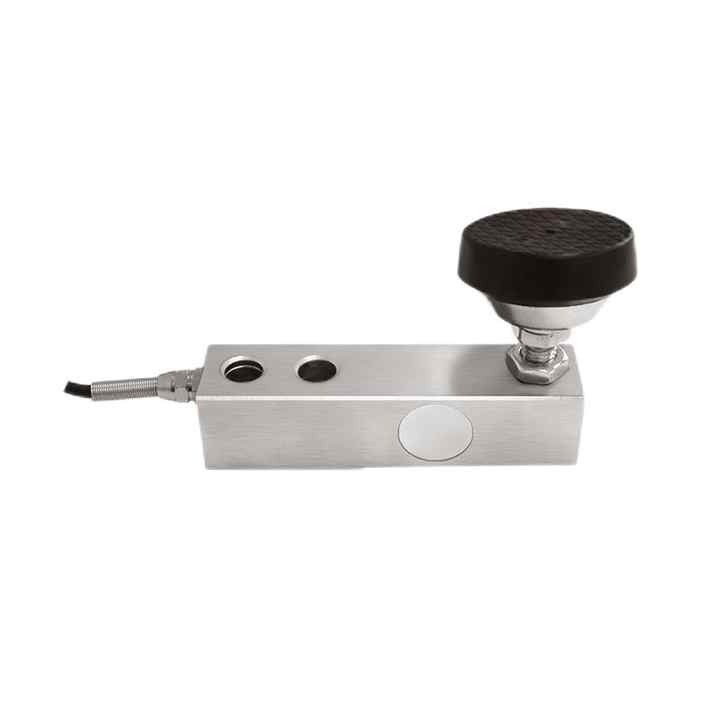

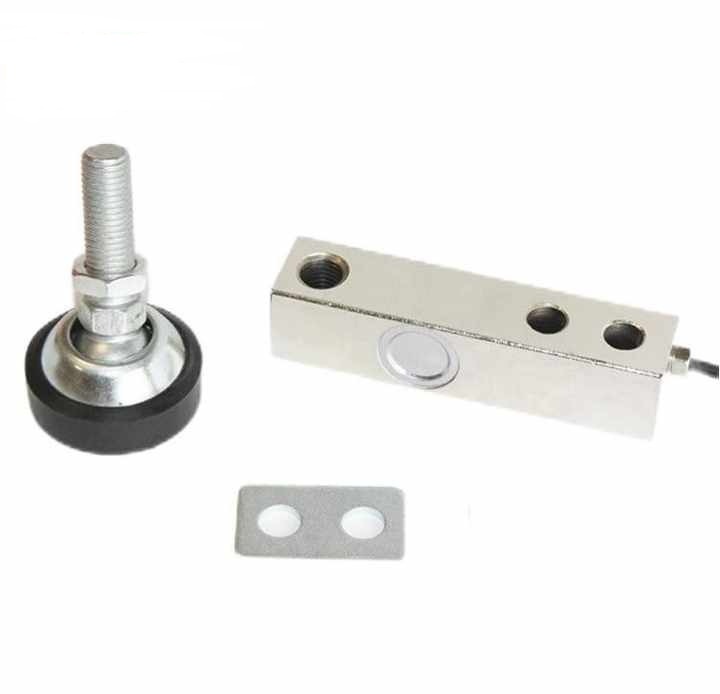

High-Accuracy Shear Beam Load Cell for Animal and Platform Scales
This shear beam load cell is ideal for livestock scales and animal scales such as cattle scales, horse scales, and pig scales. Suitable for animal platform scale and other maintenance by the general platform scale, for high precision and long life use. A dependable shear beam load cell alternative to many other existing shear beam load cells used in livestock scale systems, providing consistent performance in harsh agricultural conditions.
Menu
Use | load cell used for livestock scale |
Description | Shear beam load cell |
Type | Load Cell |
Features | cheap price load cell |
Output | Analog output |
Range | 1Ton 2 Ton 3 Ton |
Non-linearity | ±0.02%F.S |
Repeatability | ±0.02%F.S |
Comprehensive Precision | 0.02-0.05%FS |
Output resistance | 350±3Ω |
Mounting Type | screw fixation |
Series | Shear beam load cell |
Theory | Resistance strain gauge |
Description | load cell |
Sensitivity | 2.0±0.004mV/V |
Hysteresis | ±0.02%F.S |
Creep | 0.02%F.S/30min |
Input resistance | 365±100 |
Safety overload | 150%F.S |
